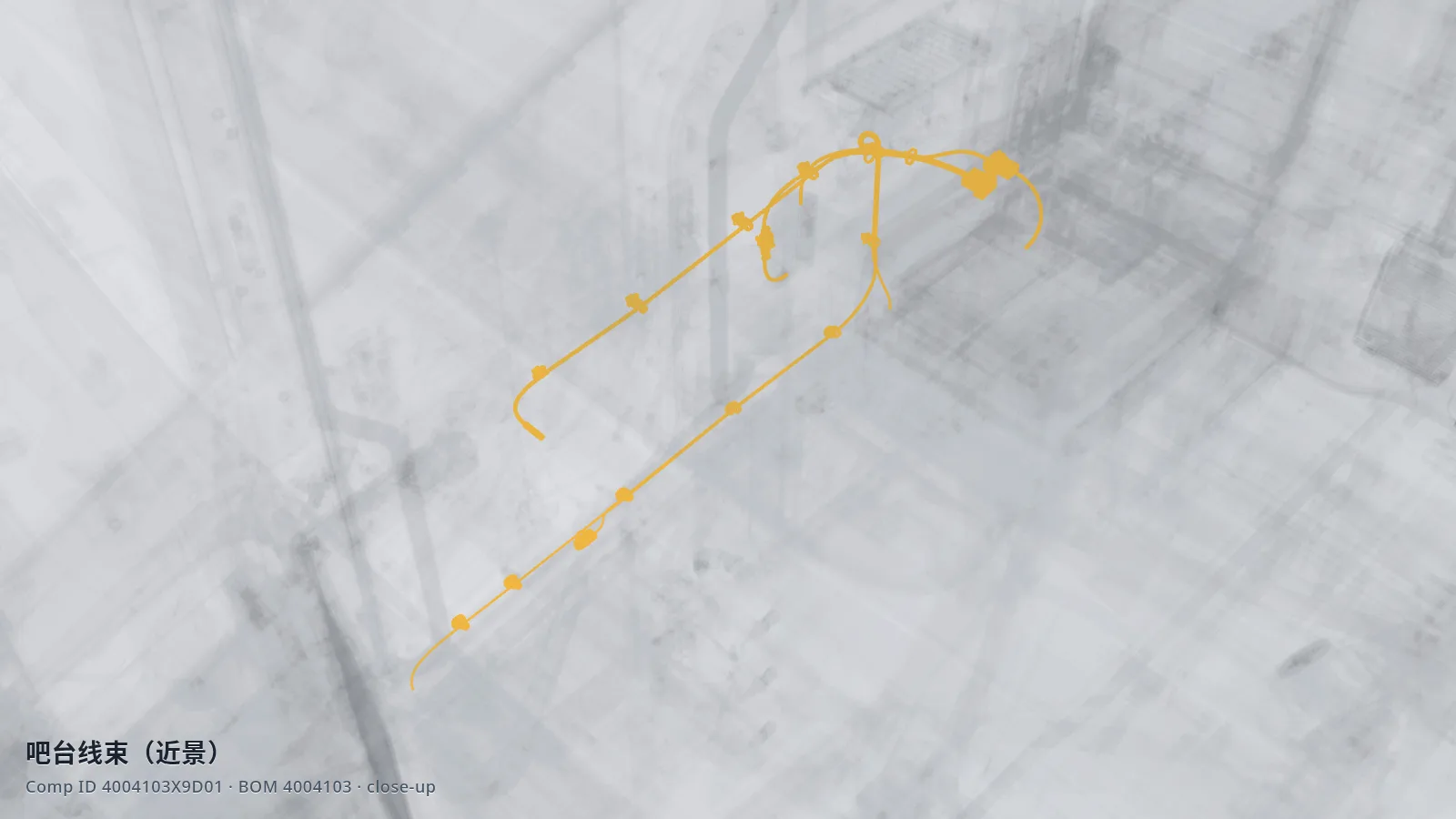

Bar-counter harness 吧台线束

Parts / components · 零部件

Terminal label · 端子代号

• Terminal label · 端子代号BA01BA01 行程开关1（端子图代号，非 Comp ID）BA01 Travel switch 1 (terminal label, not Comp ID)
• Terminal label · 端子代号BA02BA02 吧台照明（端子图代号，非 Comp ID）BA02 Bar locker lighting (terminal label, not Comp ID)
• Terminal label · 端子代号BA03BA03 环境灯1（端子图代号，非 Comp ID）BA03 Ambient light 1 (terminal label, not Comp ID)
• Terminal label · 端子代号BA04BA04 环境灯2（端子图代号，非 Comp ID）BA04 Ambient light 2 (terminal label, not Comp ID)
• Terminal label · 端子代号BA05BA05 行程开关2（端子图代号，非 Comp ID）BA05 Travel switch 2 (terminal label, not Comp ID)
• Terminal label · 端子代号BA06BA06 吧台水泵（端子图代号，非 Comp ID）BA06 Bar water pump (terminal label, not Comp ID)
• Terminal label · 端子代号I_BA_BI_BA_B 吧台对接地板（端子图代号，非 Comp ID）I_BA_B Bar↔floor mate (terminal label, not Comp ID)

Materials · 材料

• 未注明时 FLRY-B 低压导线FLRY-B LV wire (default when unspecified)General LV harness DWG tech requirement per ISO 6722 / Q/WR P1-4 — not exclusive to this family (WH11整车低压线束图纸).

Function · 功能

Bar-counter (console) harness: BA01/BA05 travel switches; BA02 bar lighting; BA03/BA04 ambient lights; BA06 bar water pump; mates floor via I_BA_B. Signals include ambient 12V (R116), ambient LIN (R201), ground Z22, pump KL30 (P209). NOT in BOM-Matrix (0 rows); name from WH11 LV DWG only.

吧台线束：BA01/BA05 行程开关；BA02 吧台照明；BA03/BA04 环境灯；BA06 吧台水泵；经 I_BA_B 对接地板。信号含氛围灯12V(R116)、氛围灯LIN(R201)、接地Z22、水泵KL30(P209)。BOM-Matrix 无此 Comp ID（0行）；名称仅见 WH11 低压图。
